CCFL Transflective Dot Matrix LCD Display Module RTP Type With Touch Panel

Name: CCFL Transflective Dot Matrix LCD Display Module RTP Type With Touch Panel
Brand: FEIFAN
Price: 1 USD

Best CCFL Transflective Dot Matrix LCD Display Module RTP Type With Touch Panel wholesale

Brand Name : FEIFAN

Model Number : FLG320240F-

Certification : ISO9001:2008,ROHS

Place of Origin : SHENZHEN CHINA

MOQ : 1 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union

Delivery Time : 25 - 30 days

Packaging Details : Standard export package

Supply Ability : 60Kpcs/month

LCD type : STN blue

Outline size : 160*109*13mm

Viewing area : 122*92mm

Standard : ISO9001:2008,ROHS

Name : LCD Display Panels

Original place : CHINA

Contact Now

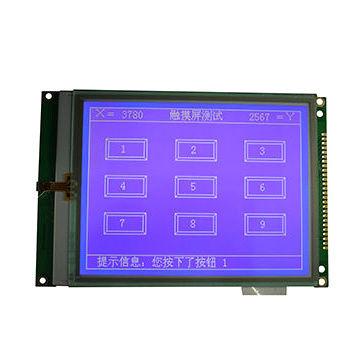

320x240 LCD Display Panels with RTP, Outline Size of 160*109*13mm

Model Number:FLG320240F-#5869

Brand Name:FEIFAN

Origin:China (mainland)

Key Specifications/Special Features:

Module number: FLG320240F
LCD type: STN blue
Polarizer types: transflective, negative
Resolution: 320*240 dots
Outline size: 160*109*13mm
Viewing area: 122*92mm
Active area: 115.17*86.37mm
Dot pitch: 0.36*0.36mm
Dot size: 0.34*0.34mm
LCD driving methods: 1/240 duty, 1/16 bias
Operating temperature: -20 to 70°C
Viewing direction: 6:00 o'clock
Backlight type: CCFL
Backlight color: white
Touch panel: yes
Controller: RA8835 or equivalent
